Description

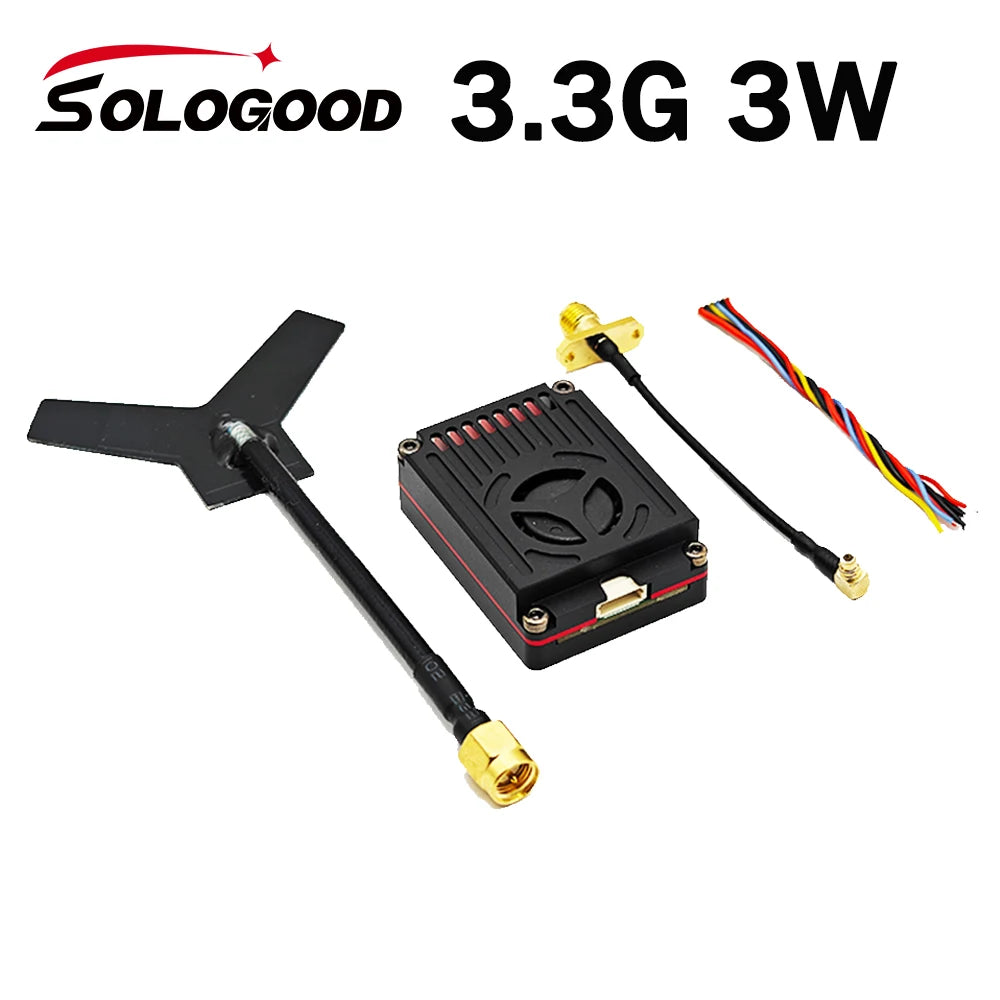

long range fpv goggles SoloGood Long Range 3.3GHz 3W FPV Video Transmitter VTX 8CH 4000mW 33. 3G_3. 0W MAPPING Instruction Manual Please make sure to connect the antenna before powering on, otherwise it will burn out!!!! 1. Basic Parameters: Weight: 22g(without antenna) Size(L*W*T): 41*30*13mm(without button protrusion). Fixed holes 20*20mm pitch, M1. 6 threaded holes. Operating voltage: DC7V 36V(2s 8s) Operating current: 900MA100MA under 12v case Maximum power consumption: 11W RF transmit power: greater than 34. 8dbm (3. 0 watts) 16
3.3G_3.0W MAPPING Instruction Manual
Please make sure to connect the antenna before powering on, otherwise it will burn out!!!!
1.Basic Parameters:
-Weight:22g(without antenna)
-Size(L*W*T):41*30*13mm(without button protrusion). Fixed holes 20*20mm pitch, M1.6 threaded holes.
-Operating voltage:DC7V-36V(2s-8s)
-Operating current:900MA±100MA under 12v case
-Maximum power consumption: 11W
-RF transmit power: greater than 34.8dbm (3.0 watts)
-16 working channels, push-button selectable settings
4 power levels, push-button selectable settings
-3.3GHz video transmission transmitter (compatible with PAL and NTSC) compact structure, small size, high transmit power
-Using large-scale integrated circuits and automotive-grade components, high reliability
Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability using digital phase-locked loop circuit, no temperature drift phenomenon.
-Support TBS Smartaudio protocol osd reference.
3, How To Use The Power Channel Button
4. Interface Definitions
1, DC-IN Positive graphic transfer power input, support range 7-36v.
2, GND Graphic power input negative terminal
3, VIDEO Analog video signal input
4, DATA osd modulation parameter communication data line, support protocol TBS smartaudio
5, GDN graphic transfer out negative terminal
6, 5V-OUT Figure transfer out the positive pole, the maximum output current of 350MA. note: connected to a similar 5-12 this kind of wide-voltage camera, may be the camera power supply voltage is insufficient, no image.
3.3G VRX 8CH FPV Video Receiver:
